Crossed Roller Beairngs

Crossed roller bearings are a type of roller bearing with cylindrical rollers or tapered rollers are arranged perpendicular to each other in a V-shaped groove. The rollers are placed alternately at 90-degree angles, which allows the bearing to support loads in all directions: radial, axial, and moment loads (tilting moments).

ZMS is a professional crossed roller bearing supplier in China. We supply high quality crossed roller bearing that good substitute of THK,IKO and INA that customer can afford.

The material can be: 42CrMo, GCr15, 9Cr18.

And the precision can be P5,P4 and P2.

We supply series:
– Standard Crossed Roller Bearings.
– Thin-Section Crossed Roller Bearings
– Split-Type Crossed Roller Bearings

THK series including:RB series, RE series, RU series, RA series,XR series.

IKO series including: CRB series, CRBC series,CRBS series, CRBE series, CRBH series, XSU series.

INA series including: XSU series, XU series, XV series, XSI series.

WhatsApp Chat

High Rigidity

The crisscross arrangement of cylindrical rollers increases rigidity and minimizes elastic deformation, making them ideal for precision applications.

High Rotational Accuracy

The rollers are arranged at right angles to each other, allowing precise rotation with minimal clearance and high running accuracy.

Ability to Support Loads in All Directions

Capable of simultaneously supporting radial loads, axial loads (in both directions), and moment (tilting) loads with a single bearing.

Compact and Space-saving Design

One crossed roller bearing can replace a combination of several conventional bearings, reducing space and weight in machinery.

Smooth Rotation and Low Friction

Rollers are separated by spacers, preventing contact between rollers, reducing friction, and ensuring smooth motion.

Easy Installation

Many designs (especially integrated types) have mounting holes, simplifying installation and alignment.

Item

Desc

Advantage

ZMS supply very full series precision crossed cylindrical roller bearings and crossed tapered roller bearings with short delivery time and cost competitive. With rich stocking for some standard modals. If you want detail to know one modal related to data sheet or drawings, please get to us.

Customization

ZMS supply customization for customers, if you have unique requirements outside the standard, we can custom made for you. And the factory can supply professional suggestions for customer reference based on the production and technology experience.

Application

Industrial Robotics
Robot arms and joints (articulated, SCARA, delta robots)
End effectors and rotary axes

Humanoid Robots
Shoulder, elbow, wrist, hip, and knee joints
Any movable joints requiring compact, high-rigidity, and multi-directional load support

Machine Tools and Precision Equipment
Rotary tables and indexing heads
CNC turning and milling machines
Grinding machines

Medical Equipment
CT and MRI scanner gantries
Surgical robots
High-precision imaging devices

Semiconductor Manufacturing Equipment
Wafer handling robots
Precision positioning stages
Lithography machines

Aerospace and Defense
Satellite and antenna positioning systems
Radar and telescope mountings
Gyroscopic platforms

Measuring and Inspection Equipment
Coordinate measuring machines (CMM)
Optical inspection devices

Direct Drive Motors
Rotary encoders
Direct-drive rotary actuators

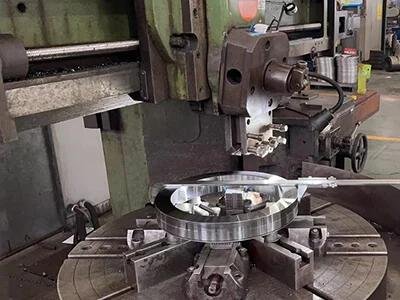

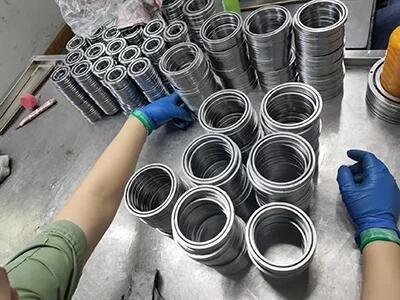

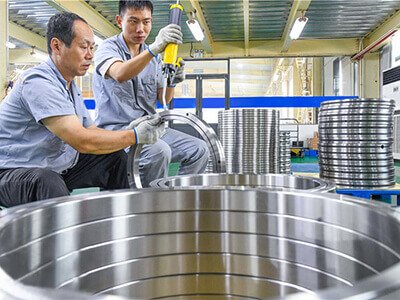

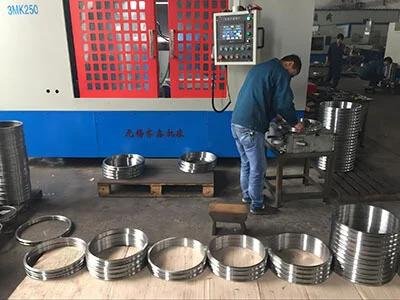

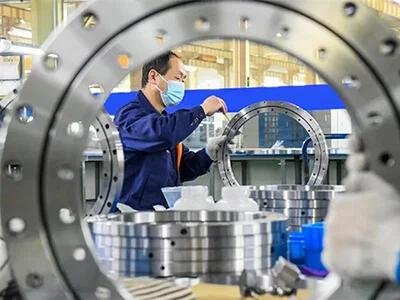

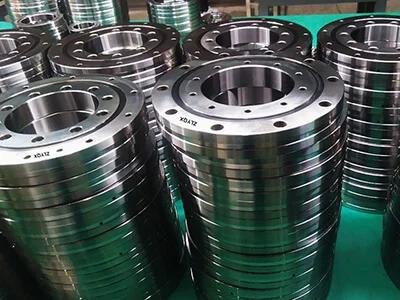

Factory View

Frequently Asked Question

What types of crossed roller bearings do you supply?

ZMS dedicated supply precision crossed roller bearings, industrial robotic bearings, humanoid robotic bearings, harmonic reducer bearings, crossed tapered roller bearings.

Can you custom made crossed roller bearings?

Beside standard series crossed roller bearings, we have a lot experience in supply custom made crossed roller bearings. As customer requirements,designing, modal choosing and production are always available.

What service can you supply?

Based on the customer’s operating conditions, we develop process and improvement plans, and continuously communicate with the customer technically.

What is the advantage of your crossed roller bearings?

There is stocking for regular modals, custom made products, we shall feedback timely about delivery time. If there is quality problem, we shall timely compensation and make the change plan. Always supply technical support with customer.

What is delivery time for mass production?

45-60days for production time.

Can you supply sample?

Standard modal with stocking can supply sample in short time.
No stocking or custom made crossed roller bearings will need MOQ

What is the packing of crossed roller bearings?

For small and medium size crossed roller bearings, it normally vacuum plastic bag+ carton+pallet or woodcase
For large size crossed roller bearings packing is wrapping+ woodcases
